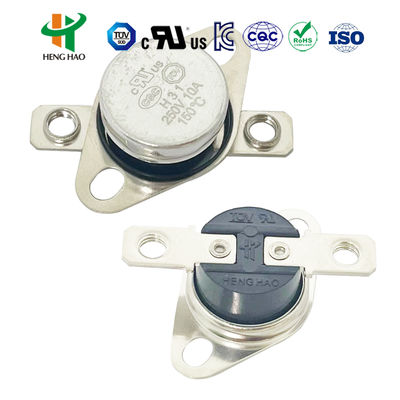

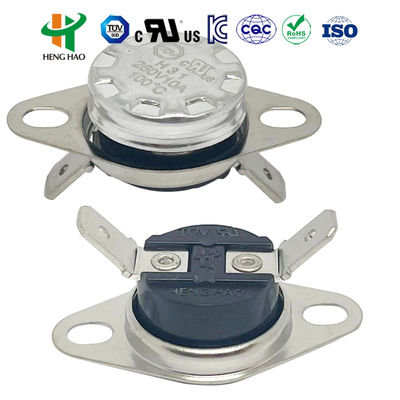

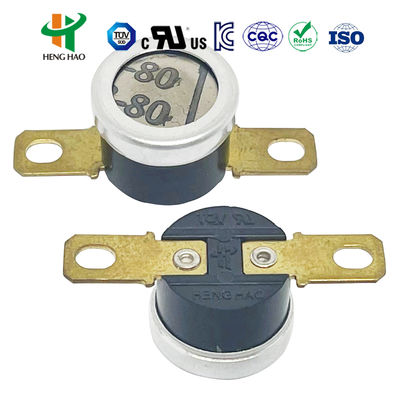

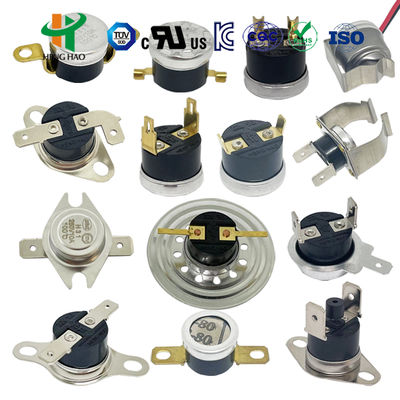

KSD301 Bimetallic Thermostat with 0~250℃ Temperature Range Normally Closed or Open Auto or Manual Reset Snap-action

KSD301 Bimetallic Thermostat with 0~250℃ Temperature Range Normally Closed or Open Auto or Manual Reset Snap-action
KSD301 Bimetallic Thermostat with 0~250℃ Temperature Range Normally Closed or Open Auto or Manual Reset Snap-action
KSD301 Bimetallic Thermostat with 0~250℃ Temperature Range Normally Closed or Open Auto or Manual Reset Snap-action KSD301 Bimetallic Thermostat with 0~250℃ Temperature Range Normally Closed or Open Auto or Manual Reset Snap-action KSD301 Bimetallic Thermostat with 0~250℃ Temperature Range Normally Closed or Open Auto or Manual Reset Snap-action KSD301 Bimetallic Thermostat with 0~250℃ Temperature Range Normally Closed or Open Auto or Manual Reset Snap-action KSD301 Bimetallic Thermostat with 0~250℃ Temperature Range Normally Closed or Open Auto or Manual Reset Snap-action KSD301 Bimetallic Thermostat with 0~250℃ Temperature Range Normally Closed or Open Auto or Manual Reset Snap-action KSD301 Bimetallic Thermostat with 0~250℃ Temperature Range Normally Closed or Open Auto or Manual Reset Snap-action

Büyük resim :  KSD301 Bimetallic Thermostat with 0~250℃ Temperature Range Normally Closed or Open Auto or Manual Reset Snap-action

Ürün ayrıntıları:
Menşe yeri: Çin
Marka adı: HENHGAO
Sertifika: UL
Model numarası: KSD301
Ödeme & teslimat koşulları:
Min sipariş miktarı: 1000
Fiyat: 0.18
Ambalaj bilgileri: 2000 ADET? KARTON
Teslim süresi: 10~15 iş günü
Ödeme koşulları: T/T, D/P
Yetenek temini: AYLIK 1000000
İletişim

KSD301 Bimetallic Thermostat with 0~250℃ Temperature Range Normally Closed or Open Auto or Manual Reset Snap-action

Açıklama
Yaşam döngüsü: 100000 döngü Voltaj ve Akım: 250V 16A
İletişim Türü: normalde kapalı veya normalde açık Anahtar Türü: Otomatik sıfırlama veya manuel sıfırlama
Vurgulamak:

0~250℃ Bimetallic Thermostat

,

Normally closed or open KSD301 Thermostat

,

Auto or manual reset Snap-action Thermostat

Bimetallic Thermostat KSD301/KSD308 Snap-action Thermostat
The KSD series thermostat operates on the principle of bimetallic discs that snap into action when temperature changes. This snap action activates internal contacts to open or close circuits. Key features include fixed working temperature, reliable snap action, minimal flashover, long service life, and reduced radio interference.
KSD301 Bimetallic Thermostat with 0~250℃ Temperature Range Normally Closed or Open Auto or Manual Reset Snap-action 0
KSD301 Thermostat Specifications
Parameter Specification
Voltage & Current AC 125V max 15A; AC250V 5A 10A 15A max 16A
Action Temperature 0~250℃
Recovery and action temperature difference 0 to 25 degrees, or according to client's request
Temperature deviation ±3 / ±5 / ±10 degree or according to client's request
Circuit resistance ≤50mΩ (Initial value)
Insulation resistance AC50Hz 1500V / min, no breakdown blinding (Normal State)
Life cycle ≥100000 times
Contact type Normally closed or Normally open
Mounting bracket Movable or immovable
Terminal type a. Terminal type: 187series of 4.8*0.5mm and 4.8*0.8mm, 250 series of 6.3*0.8mm
b. Terminal Angle: bending angle: 0~90°C optional
Housing Plastic or ceramic
Temperature sensor face Aluminum cap or copper head
KSD301 Bimetallic Thermostat with 0~250℃ Temperature Range Normally Closed or Open Auto or Manual Reset Snap-action 1
KSD301 Auto Reset vs Manual Reset Types
Manual Reset Type:
  • Uses bimetallic strip temperature sensing components
  • Quickly disconnects when reaching action temperature range
  • Requires manual reset button press to reconnect circuit
  • Resets when temperature declines 20°C after snap action
  • Recommended reset force: 4-6N
  • Minimum 20.4mm clearance required between reset button and cover
Auto Reset Type:
  • Uses bimetallic strip temperature sensing components
  • Quickly disconnects when reaching action temperature range
  • Automatically resets when temperature declines to fixed point
KSD301 Bimetal Thermostat Applications
Widely used for temperature control in household appliances including coffee pots, automatic toasters, laminators, electric water pots, steam guns, steam irons, wind warmers, microwave ovens, and water dispensers.
Temperature Settings
Open Temp. Reset Temp. Open Temp. Reset Temp. Open Temp. Reset Temp.
-20℃±5℃ 5℃±5℃ 95℃±5℃ 80℃±5℃ 205℃±5℃ 175℃±10℃
-15℃±5℃ 5℃±5℃ 100℃±5℃ 80℃±10℃ 210℃±5℃ 180℃±10℃
-10℃±5℃ 5℃±5℃ 105℃±5℃ 85℃±10℃ 215℃±5℃ 185℃±10℃
0℃±5℃ -10℃±5℃ 110℃±5℃ 90℃±10℃ 220℃±5℃ 190℃±10℃
5℃±5℃ -5℃±5℃ 115℃±5℃ 95℃±10℃ 225℃±5℃ 195℃±10℃
10℃±5℃ 0℃±5℃ 120℃±5℃ 100℃±10℃ 230℃±5℃ 200℃±10℃
15℃±5℃ 5℃±5℃ 125℃±5℃ 105℃±10℃ 235℃±5℃ 205℃±10℃
20℃±5℃ 5℃±5℃ 130℃±5℃ 110℃±10℃ 240℃±5℃ 210℃±10℃
25℃±5℃ 10℃±5℃ 135℃±5℃ 115℃±10℃ 245℃±5℃ 215℃±10℃
30℃±5℃ 15℃±5℃ 140℃±5℃ 120℃±10℃ 250℃±5℃ 220℃±10℃
KSD301 Bimetallic Thermostat with 0~250℃ Temperature Range Normally Closed or Open Auto or Manual Reset Snap-action 2
Certifications: UL, CQC, TUV and RoHS compliant
