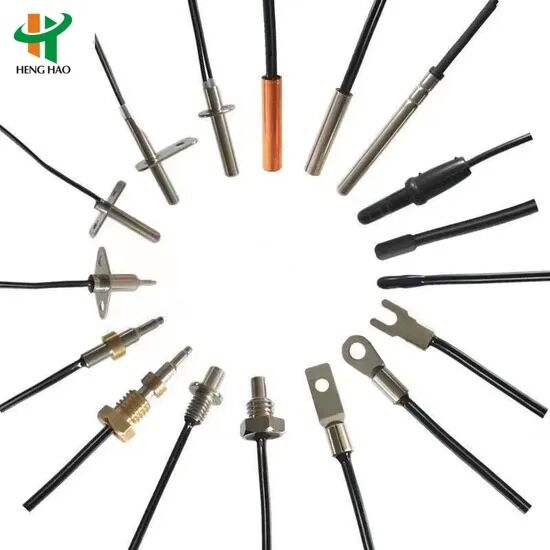

10K 3950b Temperature Sensor Thermistor Temperature Sensing Probe

10K 3950b Temperature Sensor Thermistor Temperature Sensing Probe
10K 3950b Temperature Sensor Thermistor Temperature Sensing Probe 10K 3950b Temperature Sensor Thermistor Temperature Sensing Probe 10K 3950b Temperature Sensor Thermistor Temperature Sensing Probe 10K 3950b Temperature Sensor Thermistor Temperature Sensing Probe 10K 3950b Temperature Sensor Thermistor Temperature Sensing Probe 10K 3950b Temperature Sensor Thermistor Temperature Sensing Probe

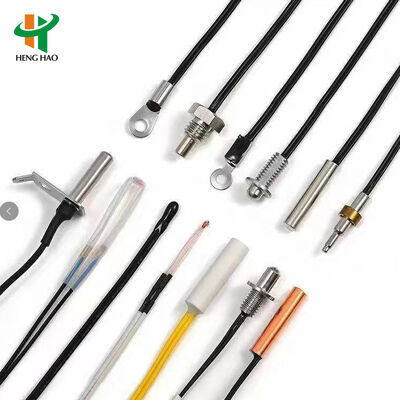

Büyük resim :  10K 3950b Temperature Sensor Thermistor Temperature Sensing Probe

Ürün ayrıntıları: Ödeme & teslimat koşulları:
Min sipariş miktarı: 1.000
Fiyat: 0.5
İletişim

10K 3950b Temperature Sensor Thermistor Temperature Sensing Probe

Açıklama
Nominal direnç: 5K, 8K, 10K, 15k ila 100K Direnç toleransı: ±%1, ±%2, ±%3, ±%5, ±%10
Malzeme katsayısı: 2500 ~ 5000K dağılım katsayısı: ≥0,8 mw/°C
Termal zaman sabiti: ≤25s Çalışma sıcaklığı: -40°C~+250°C
Nominal Güç: 50mW Kurşun tel tipi: #24 30#2651, UL4411 28#
Sıcaklık Aralığı: -50 ila 500°C Doğruluk notu: A Sınıfı (0.1),B Sınıfı(0.3),2B Sınıfı (0.5),1/3 B Sınıfı(0.1)
Prob çapı: 3mm~16mm Koruma seviyesi: IP68
Termal zaman sabiti: 0.5s Kurşun tel seçenekleri: Üç damarlı şerit tetraflorür korumalı tel, Silikon tel, Üç çekirdekli yüksek sıcaklık teli, Dört flo
Anahtar Türü: Otomatik sıfırlama veya manuel sıfırlama
Vurgulamak:

10K thermistor temperature sensor probe

,

3950b NTC temperature sensing probe

,

thermistor probe with high accuracy

10K 3950b Temperature Sensor Thermistor Temperature Sensing Probe
NTC Temperature Sensor

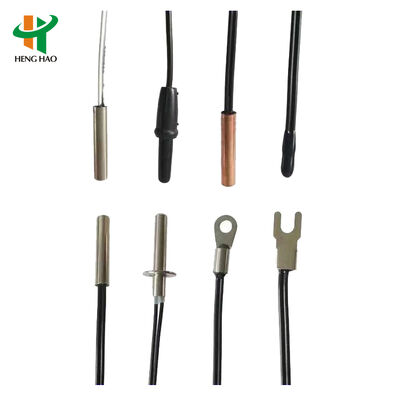

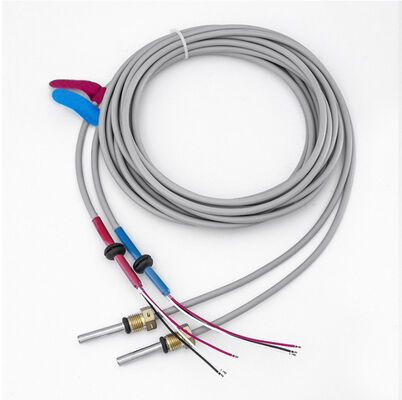

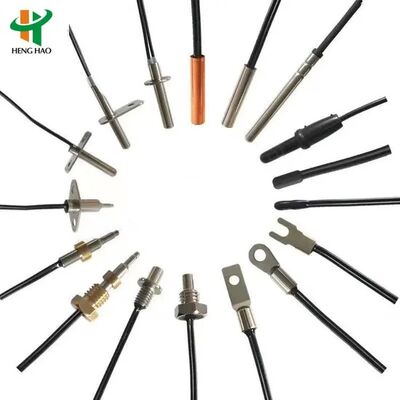

10K 3950b Temperature Sensor Thermistor Temperature Sensing Probe 0 10K 3950b Temperature Sensor Thermistor Temperature Sensing Probe 1 10K 3950b Temperature Sensor Thermistor Temperature Sensing Probe 2
Technical Specifications
Specification Name Scope Detection Condition
R25 (nominal resistance value) 5K, 8K, 10K, 15K to 100K Constant temperature 25ºC±0.05ºC
R25 Permissible variance(%) ±1, ±2, ±3, ±5, ±10 Constant temperature 25ºC±0.05ºC
B25/50 or B25/85 (material coefficient) 2500~5000K Constant temperature 25ºC±0.05ºC
Constant temperature 85ºC±0.05ºC
B25/50 Value permissible variance(%) ±1, ±2 Constant temperature 25ºC±0.05ºC
Constant temperature 50ºC±0.05ºC
∫ (dissipation coefficient) ≥0.8mw/ºC Static in the air
T (thermal time constant) ≤25S Static in the air
Ta (Working temperature) -40ºC~+250ºC
Pn (rated power) 50mw within working temperature
Case and head Fork head, O ring head, drops of water head, Metal case, Thread copper case, injection head, or according to client's drawing
Lead wire #24 30# 2651, UL4411 28#, double wired conductor and so on, or according to client's request.
Terminal Can be riveted according to the requirements of various terminals
Our Services
  • Your inquiry will be replied within 12 hours
  • Well-trained and experienced staff are always at your service
  • Unique design products and many private mold product are waiting for your choice
  • Strictly protect your private information and your ideas of design
Frequently Asked Questions
Q1. Can I have a sample order for SENSOR?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: Sample needs 3-5 days, mass production time needs 1-2 weeks based on the amount of your order.
Q3. Do you have any MOQ limit for led waterproof string order?
A: At least 1 for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping are also optional.

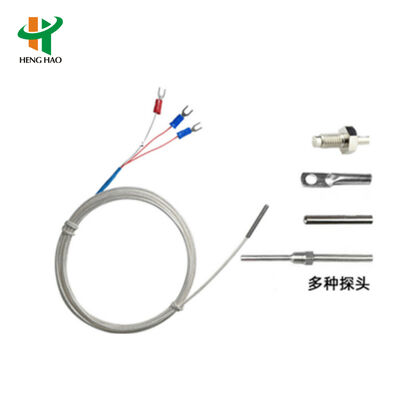

PT100/PT500/PT1000 Temperature Sensor
Product name PT100 temperature sensor (Thermocouples, hot resistance)
Graduation number PT100, CU50, PT1000, K, E, J, T etc.
Temperature range -50 to 500ºC
Chip imported from Heraeus - Germany
Temperature probe 304 stainless steel, plastic or other according to client's request
Accuracy Grade A Grade (0.1), B Grade(0.3), 2B Grade (0.5), 1/3 B Grade(0.1)
Temperature probe 4*30mm, or according to client's request to design.
Thermal time constant 0.5S
Lead wire Three core sliver tetrafluoride shielded wire (-50~200ºC)
Silicone wire(-200~200ºC)
Three core high temperature wire(-40~450ºC)
Four fluorine wire (-50~150ºC)
Dia 3mm~16mm
Terminal Y type, Pin, XH2.54 or according to client's request.
Level of protection IP68
