Temperature Sensor Ntc Thermistor PT100 J K Platinum Resistor Thermocouple

Temperature Sensor Ntc Thermistor PT100 J K Platinum Resistor Thermocouple
Temperature Sensor Ntc Thermistor PT100 J K Platinum Resistor Thermocouple Temperature Sensor Ntc Thermistor PT100 J K Platinum Resistor Thermocouple Temperature Sensor Ntc Thermistor PT100 J K Platinum Resistor Thermocouple Temperature Sensor Ntc Thermistor PT100 J K Platinum Resistor Thermocouple Temperature Sensor Ntc Thermistor PT100 J K Platinum Resistor Thermocouple Temperature Sensor Ntc Thermistor PT100 J K Platinum Resistor Thermocouple

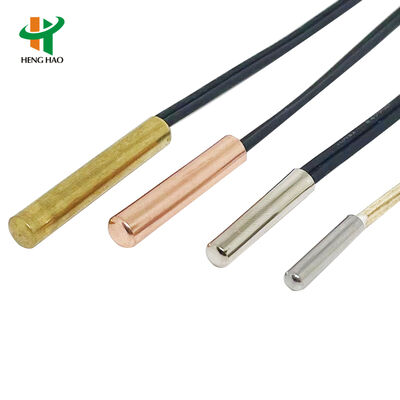

Büyük resim :  Temperature Sensor Ntc Thermistor PT100 J K Platinum Resistor Thermocouple

Ürün ayrıntıları:
Sertifika: RoHS
Ödeme & teslimat koşulları:
Min sipariş miktarı: 1.000
Fiyat: 0.5
İletişim

Temperature Sensor Ntc Thermistor PT100 J K Platinum Resistor Thermocouple

Açıklama
Model Numarası: 3950K iletişim: Temassız
Çıkış sinyali: termistör Üretim süreci: Enjeksiyon
Malzeme: Dirençli Lityum Klorür IP Derecelendirmesi: IP65
KAFA: Metal veya Plastik Boru B değeri: 3950K 3435K 3977KPT100
Nominal direnç: 5K, 8K, 10K, 15k ila 100K B25/50 değer: 2500 ~ 5000K
dağılım katsayısı: ≥0,8 mw/°C Termal zaman sabiti: ≤25s
Çalışma sıcaklığı: -40°C~+250°C Nominal Güç: 50mW
Sıcaklık Aralığı: -50 ila 500°C
Vurgulamak:

NTC thermistor temperature sensor

,

PT100 platinum resistor thermocouple

,

J K type thermocouple sensor

Temperature Sensor NTC Thermistor PT100 J K Platinum Resistor Thermocouple
NTC Temperature Sensor Specifications
Specification Name Scope Detection Condition
R25 (nominal resistance value) 5K, 8K, 10K, 15K to 100K Constant temperature 25ºC±0.05ºC
R25 Permissible variance(%) ±1, ±2, ±3, ±5, ±10 Constant temperature 25ºC±0.05ºC
B25/50 or B25/85 (material coefficient) 2500~5000K Constant temperature 25ºC±0.05ºC
Constant temperature 85ºC±0.05ºC
B25/50 Value permissible variance(%) ±1, ±2 Constant temperature 25ºC±0.05ºC
Constant temperature 50ºC±0.05ºC
∫ (dissipation coefficient) ≥0.8mw/ºC Static in the air
T (thermal time constant) ≤25S Static in the air
Ta (Working temperature) -40ºC~+250ºC
Pn (rated power) 50mw Within working temperature
Case and head Fork head, O ring head, drops of water head, Metal case, Thread copper case, injection head, or according to client's drawing
Lead wire #24 30# 2651, UL4411 28#, double wired conductor and so on, or according to client's request
Terminal Can be riveted according to the requirements of various terminals
PT100/PT500/PT1000 Temperature Sensor
Product name PT100 temperature sensor (Thermocouples, hot resistance)
Graduation number PT100, CU50, PT1000, K, E, J, T etc.
Temperature range -50 to 500ºC
Chip imported from Heraeus - Germany
Temperature probe 304 stainless steel, plastic or other according to client's request
Accuracy Grade A Grade (0.1), B Grade(0.3), 2B Grade (0.5), 1/3 B Grade(0.1)
Temperature probe size 4*30mm, or according to client's request to design
Thermal time constant 0.5S
Lead wire options Three core sliver tetrafluoride shielded wire (-50~200ºC)
Silicone wire (-200~200ºC)
Three core high temperature wire (-40~450ºC)
Four fluorine wire (-50~150ºC)
Diameter 3mm~16mm
Terminal options Y type, Pin, XH2.54 or according to client's request
Level of protection IP68

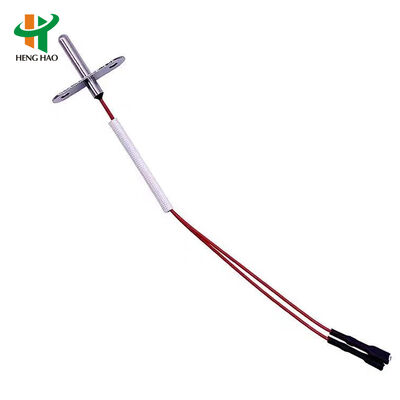

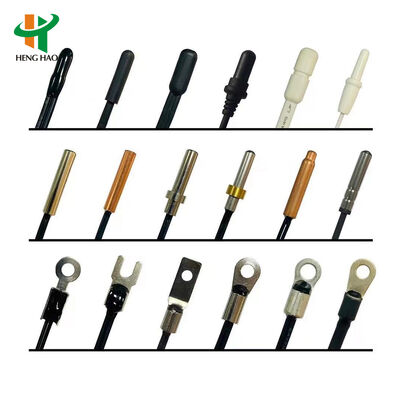

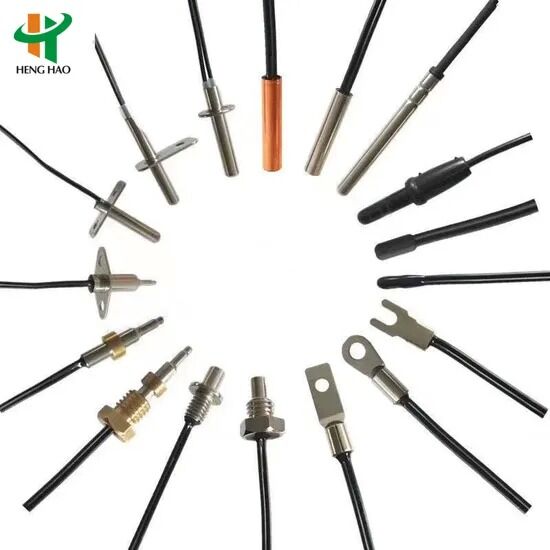

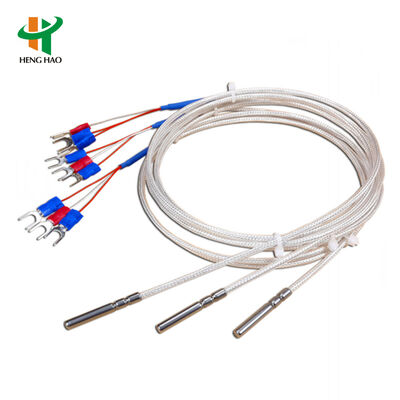

Temperature Sensor Ntc Thermistor PT100 J K Platinum Resistor Thermocouple 0 Temperature Sensor Ntc Thermistor PT100 J K Platinum Resistor Thermocouple 1 Temperature Sensor Ntc Thermistor PT100 J K Platinum Resistor Thermocouple 2 Temperature Sensor Ntc Thermistor PT100 J K Platinum Resistor Thermocouple 3
Our Services
Your inquiry will be replied within 12 hours
Well-trained and experienced staff are always at your service
Unique design products and many private mold product are waiting for your choice
Strictly protect your private information and your ideas of design
Frequently Asked Questions
Q1. Can I have a sample order for SENSOR?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: Sample needs 3-5 days, mass production time needs 1-2 weeks based on the amount of your order.
Q3. Do you have any MOQ limit for led waterproof string order?
A: At least 1 for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping are also optional.

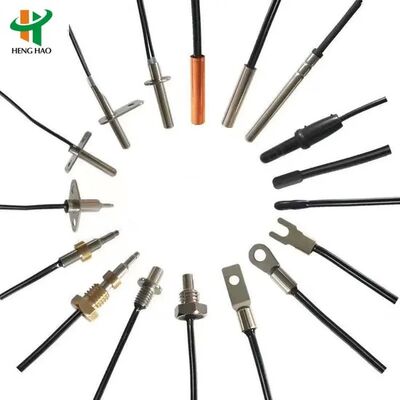

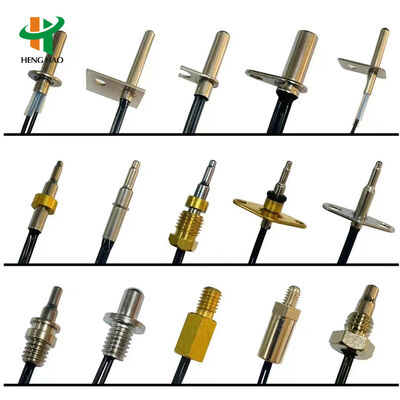

Temperature Sensor Ntc Thermistor PT100 J K Platinum Resistor Thermocouple 4 Temperature Sensor Ntc Thermistor PT100 J K Platinum Resistor Thermocouple 5
