Manufacturer Outlet Ot Ring Ntc Temperature Sensor 1K 5K 10K 50K 100K Thermistor

Manufacturer Outlet Ot Ring Ntc Temperature Sensor 1K 5K 10K 50K 100K Thermistor
Manufacturer Outlet Ot Ring Ntc Temperature Sensor 1K 5K 10K 50K 100K Thermistor Manufacturer Outlet Ot Ring Ntc Temperature Sensor 1K 5K 10K 50K 100K Thermistor Manufacturer Outlet Ot Ring Ntc Temperature Sensor 1K 5K 10K 50K 100K Thermistor Manufacturer Outlet Ot Ring Ntc Temperature Sensor 1K 5K 10K 50K 100K Thermistor Manufacturer Outlet Ot Ring Ntc Temperature Sensor 1K 5K 10K 50K 100K Thermistor Manufacturer Outlet Ot Ring Ntc Temperature Sensor 1K 5K 10K 50K 100K Thermistor

Büyük resim :  Manufacturer Outlet Ot Ring Ntc Temperature Sensor 1K 5K 10K 50K 100K Thermistor

Ürün ayrıntıları:
Sertifika: RoHS
Ödeme & teslimat koşulları:
Min sipariş miktarı: 1.000
Fiyat: 0.5
İletişim

Manufacturer Outlet Ot Ring Ntc Temperature Sensor 1K 5K 10K 50K 100K Thermistor

Açıklama
Model Numarası: NTC İletişim Türü: Temassız
Çıkış sinyali: termistör Üretim süreci: Enjeksiyon
Malzeme: Dirençli Lityum Klorür IP Derecelendirmesi: IP65
Kafa tipi: Metal veya Plastik Boru B değeri: 3950K 3435K 3977KPT100
Nominal direnç: 5K, 8K, 10K, 15k ila 100K B25/50 değer: 2500 ~ 5000K
dağılım katsayısı: ≥0,8 mw/°C Termal zaman sabiti: ≤25s
Çalışma sıcaklığı: -40°C~+250°C Nominal Güç: 50mW
Sıcaklık Aralığı: -50 ila 500°C
Vurgulamak:

NTC thermistor temperature sensor 10K

,

1K thermistor temperature sensor with warranty

,

100K NTC temperature sensor manufacturer outlet

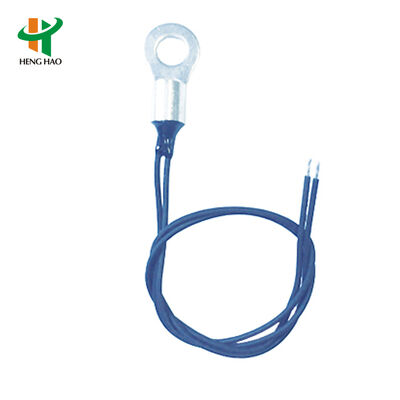

Manufacturer Outlet OT Ring NTC Temperature Sensor (1K 5K 10K 50K 100K Thermistor)
NTC Temperature Sensor Specifications
Specification Name Scope Detection Condition
R25 (nominal resistance value) 5K, 8K, 10K, 15K to 100K Constant temperature 25ºC±0.05ºC
R25 Permissible variance(%) ±1, ±2, ±3, ±5, ±10 Constant temperature 25ºC±0.05ºC
B25/50 or B25/85 (material coefficient) 2500~5000K Constant temperature 25ºC±0.05ºC
Constant temperature 85ºC±0.05ºC
B25/50 Value permissible variance(%) ±1, ±2 Constant temperature 25ºC±0.05ºC
Constant temperature 50ºC±0.05ºC
∫ (dissipation coefficient) ≥0.8mw/ºC Static in the air
T (thermal time constant) ≤25S Static in the air
Ta (Working temperature) -40ºC~+250ºC
Pn (rated power) 50mw Within working temperature

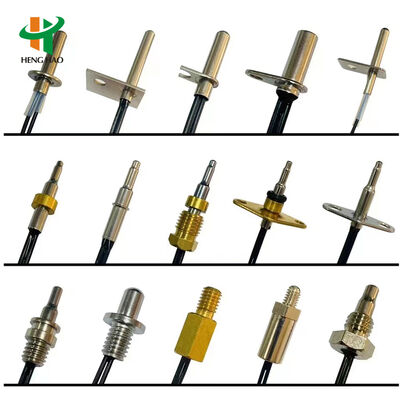

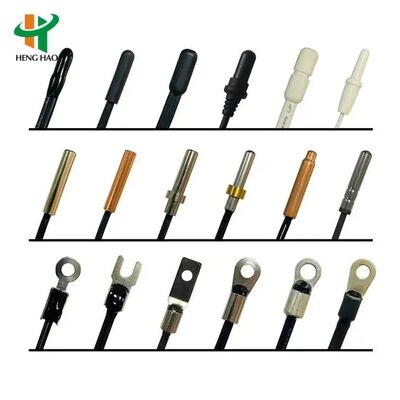

Case and Head Options: Fork head, O ring head, drops of water head, Metal case, Thread copper case, injection head, or custom according to client's drawing.
Lead Wire Options: #24 30# 2651, UL4411 28#, double wired conductor and others, or custom according to client's request.
Terminal Options: Can be riveted according to the requirements of various terminals.
PT100/PT500/PT1000 Temperature Sensor
Product Name PT100 temperature sensor (Thermocouples, hot resistance)
Graduation Number PT100, CU50, PT1000, K, E, J, T etc.
Temperature Range -50 to 500ºC
Chip Imported From Heraeus - Germany
Temperature Probe 304 stainless steel, plastic or other according to client's request
Accuracy Grade A Grade (0.1), B Grade(0.3), 2B Grade (0.5), 1/3 B Grade(0.1)
Temperature Probe Size 4*30mm, or custom according to client's request
Thermal Time Constant 0.5S
Lead Wire Options Three core sliver tetrafluoride shielded wire (-50~200ºC)
Silicone wire (-200~200ºC)
Three core high temperature wire (-40~450ºC)
Four fluorine wire (-50~150ºC)
Diameter 3mm~16mm
Terminal Options Y type, Pin, XH2.54 or custom according to client's request
Level of Protection IP68
Manufacturer Outlet Ot Ring Ntc Temperature Sensor 1K 5K 10K 50K 100K Thermistor 0
Manufacturer Outlet Ot Ring Ntc Temperature Sensor 1K 5K 10K 50K 100K Thermistor 1
Manufacturer Outlet Ot Ring Ntc Temperature Sensor 1K 5K 10K 50K 100K Thermistor 2
Manufacturer Outlet Ot Ring Ntc Temperature Sensor 1K 5K 10K 50K 100K Thermistor 3
Our Services
  • Your inquiry will be replied within 12 hours
  • Well-trained and experienced staff are always at your service
  • Unique design products and many private mold product are waiting for your choice
  • Strictly protect your private information and your ideas of design
Frequently Asked Questions
Q1. Can I have a sample order for SENSOR?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: Sample needs 3-5 days, mass production time needs 1-2 weeks based on the amount of your order.
Q3. Do you have any MOQ limit for led waterproof string order?
A: At least 1 for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping are also optional.
Manufacturer Outlet Ot Ring Ntc Temperature Sensor 1K 5K 10K 50K 100K Thermistor 4
Manufacturer Outlet Ot Ring Ntc Temperature Sensor 1K 5K 10K 50K 100K Thermistor 5
